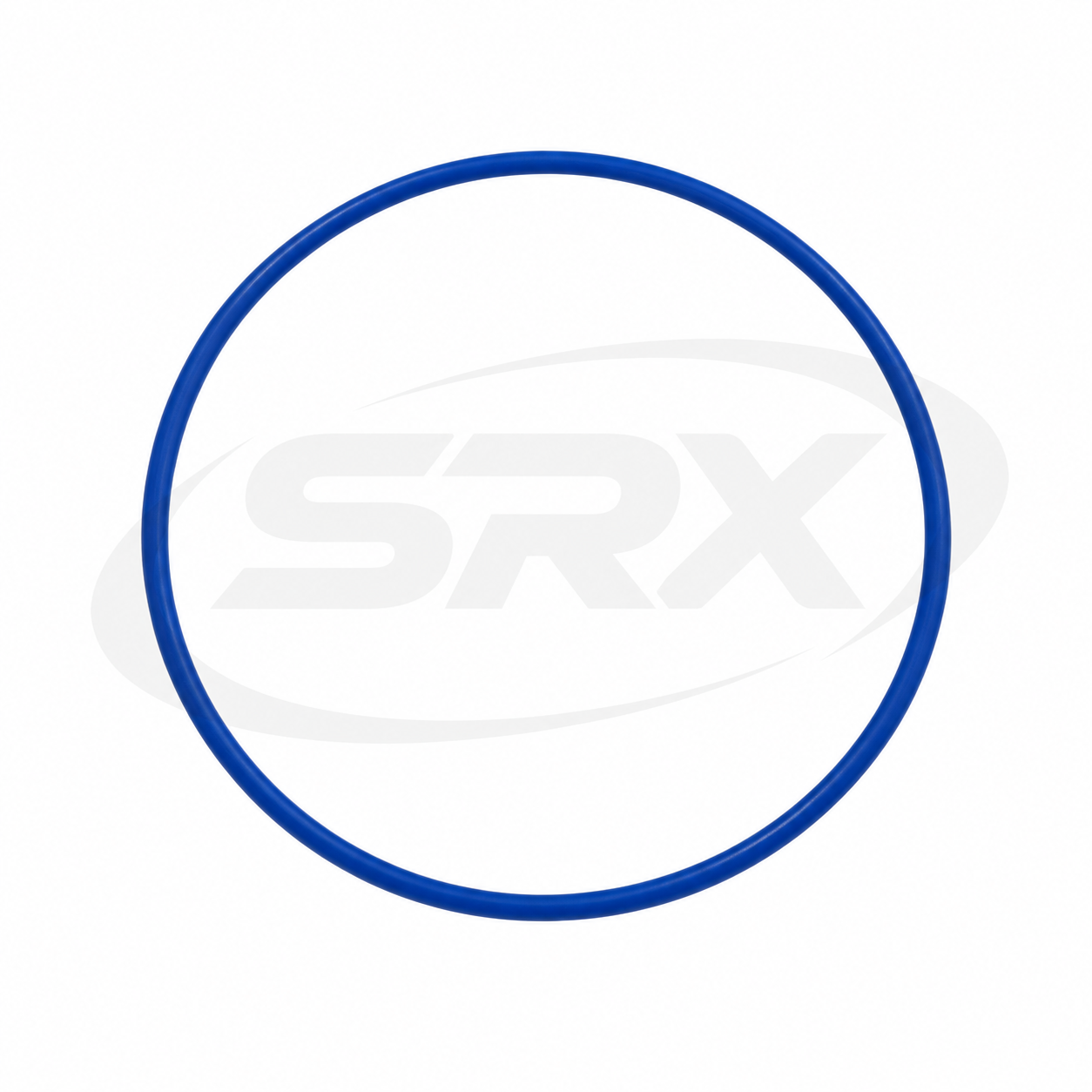

Name: AFA A2863701 O-Ring Seal – Cummins ISM QSM Water Pump / Alternator Drive Seal – Replaces 2863701
Brand: AFA Industries
SKU: 2863701AFAI
Price: 3.25 USD
Availability: InStock

AFA A2863701 O-Ring Seal – Cummins ISM QSM Water Pump / Alternator Drive Seal – Replaces 2863701

$3.25

MA3H – AFA A2863701 is an aftermarket O-ring seal that replaces Cummins 2863701. Cummins parts catalogs show 2863701 in ISM/QSM water-pump and accessory-drive areas, and FP Diesel lists the equivalent FP-2863701 for ISM/QSM applications. The O-ring for A2863701 / Cummins 2863701 / PAI 121305 measures: Inside diameter: 3.987 in / 101.27 mm Cross-section thickness: 0.103…

6 in stock

Need More Than We Show in Stock?
Give us a call! We may have additional inventory available or may be able to quickly fulfill larger quantities. Contact our team for current availability and lead times.

Description

MA3H – AFA A2863701 is an aftermarket O-ring seal that replaces Cummins 2863701. Cummins parts catalogs show 2863701 in ISM/QSM water-pump and accessory-drive areas, and FP Diesel lists the equivalent FP-2863701 for ISM/QSM applications.

The O-ring for A2863701 / Cummins 2863701 / PAI 121305 measures:

Inside diameter: 3.987 in / 101.27 mm
Cross-section thickness: 0.103 in / 2.62 mm
Approx. outside diameter: 4.193 in / 106.51 mm
AS568 size: -155
Material on the PAI version: HNBR, 75 durometer, with a sky-blue Teflon coating.

Additional information

Weight	.3 lbs
Dimensions	4 × 4 × 4 in
